Placeholders

Cloud Scripting supports a set of placeholders that can be used in any section of a manifest file, if the section isn't strictly limited with its content. The Cloud Scripting engine makes an attempt to resolve all placeholders on the package installation stage. If it's not possible, the placeholder will be unresolved and displayed in the text as is (e.g. ${placeholder}).

Note

To output all available placeholders, use a special ${placeholders} placeholder. For more information, see the Troubleshooting guide.

The following specific groups of placeholders are singled out:

Placeholders like env, nodes, targetNodes, response are dynamically updated. They could be updated by their requests if they are required to be updated.

Environment Placeholders

This is the list of placeholders that you can use within the environment section ({env.}) of your manifest.

  • {env.}
    • appid [string] - application appid
    • domain [string] - application domain
    • protocol [string] - protocol
    • url [string] - link to application (environment)
    • region [string] - a region name where environment has been installed
    • displayName [string] - application display name
    • envName [string] - short domain name (without hosting provider URL)
    • shortdomain [string] - short domain name (alias to envName)
    • name [string] - alias to envName
    • hardwareNodeGroup [string] - hardware node group
    • ssl [boolean] - environment SSL status
    • sslstate [boolean] - environment SSL state
    • status [number] - environment status. The available statuses are:
      • running
      • down
      • launching
      • sleep
      • creating
      • cloning
      • exists
    • uid [number] - user ID
    • ishaenabled [boolean] - high availability status
    • ha [boolean] - alias to ${env.ishaenabled}
    • isTransferring [boolean] - transferring status
    • creatorUid [number] - environment creator ID
    • engine.id [number] - engine ID
    • engine.keyword [string] - engine keyword
    • engine.name [string] - engine name
    • engine.type [string] - engine type
    • engine.vcsSupport [boolean] - VCS support status
    • engine.version [string] - engine version
    • contexts.type [string] - environment context type
    • contexts.context [string] - context name
    • contexts.archivename [string] - context display name
    • contexts.length [number] - number of contexts that are deployed to an environment
    • extdomains.length [number] - number of external domains that are bound to an environment

Node Placeholders

This is the list of placeholders that you can use within the nodes section ({nodes.}) of your manifest.

  • ${nodes.}
    • {nodes.(group)[(i)].(key)}
    • {nodes.(group).first.(key)}
    • {nodes.(group).last.(key)}
    • {nodes.(group).master.(key)}
      where:
    • (group) - node group (nodeGroup or nodeType)
    • (i) - node index, starting from '0'
    • (key) - name of the applied parameter, according to the following list:
      • address - internal or external IP address
      • adminUrl - full URL address with protocol
      • canBeExported [boolean] - Virtuozzo Application Platform Export feature
      • bandwidthLimit - node bandwidth limit
      • contextValidatorRegex - validation for context names
      • diskIopsLimit - IOPS limitation quota
      • addons.length - number of available add-ons at the selected node
      • diskLimit - hardware node disk space quota in MB
      • endpoints [array indexes] - endpoints functionality
        • domain - full domain name of the node the endpoint is being set for
        • id - node ID
        • name - title for the new endpoint (can be either custom or predefined)
        • privatePort - preferred local node port
        • publicPort - private (dynamic) port used for mapping
        • protocol - protocol type (currently, only TCP is provided)
        • length - number of available endpoints within the selected node
      • fixedCloudlets - fixed cloudlets number
      • flexibleCloudlets - flexible cloudlets number
      • id - node ID
      • intIP - internal IP address
      • extIPs - external IP address array (extips is an alias)
      • isClusterSupport
      • isExternalIpRequired - status, indicating that node requires the external IP address
      • isResetPassword - enables to reset a service password
      • isWebAccess
      • ismaster - master node status in the nodeGroup (i.e. layer)
      • maxchanks
      • length - number of nodes available in an environment
      • name - stack name
      • nodeGroup - node layer, e.g. lb, cp, sqldb, nosqldb, cache, storage, (extra for Docker containers)
      • nodeType - stacks nodeType
      • nodemission - deprecated value (same as nodeGroup)
      • osType - OS type (e.g. Linux)
      • password - container password
      • port - service port
      • type - container compatibility (native)
      • url - full URL address with protocol
      • version - stack version
      • engines(for compute nodes):
        • id - engine ID at the platform
        • keyword - engine keyword (e.g. java7, php7.0)
        • name - full engine name (e.g. Java 8, PHP 7)
        • type - engine type (e.g. java, php, ruby, python, nodejs)
        • vcsSupport - supporting VCS in a container
        • version - engine version
        • length - number of available engines for the selected compute layer
      • activeEngine(current engine in a container):
        • id - engine ID at the platform
        • keyword - engine keyword (e.g. java7, php7.0)
        • name - full engine name (e.g. Java 8, PHP 7)
        • type - engine type (e.g. java, php, ruby, python, nodejs)
        • vcsSupport - supporting VCS in a container
        • version - engine version
      • packages [array] - packages with add-ons installed over the corresponding nodes (e.g. FTP add-on)
        • description - package description
        • documentationurl - redirect to page(s) with more info on the particular add-on
        • iconurl - add-on logo
        • id - ID of the installed package
        • length - number of packages installed to a node
        • isInstalled - installation status, the possible values are 'true' & 'false'

In case a few nodes are available within a single nodeGroup, you can execute actions in one of them by specifying:

  • {nodes.cp[1].address} - IP address of the second compute node
  • {nodes.bl.first.address} - first IP address of a balancer node in the nodeGroup array
  • {nodes.db.last.address} - last IP address of a batabase node
  • {nodes.(group).master.(key)} - main node in the nodeGroup (i.e. layer)

Event Placeholders

Event placeholders represent a set of dynamic parameters that are executed as a result of a certain event occurrence. The event placeholders have their custom set of parameters and begin with the default keywords:

  • ${event.params.(key)} - where key is a name of the event parameter
  • ${event.response.(key)} -where key is a name of the event response parameter

Learn more about the event placeholders within the Events page.

Account Information

This is the list of placeholders that you can use to specify account information.

  • ${user.uid} - user ID at the Virtuozzo Application Platform
  • ${user.email} - user email address
  • ${user.appPassword} - random value that can be used to set application passwords
  • ${user.name} - email address value (same as ${user.email})

Input Parameters

This is the list of placeholders that you can use to specify input parameters.

  • ${settings.jelastic_email} - user email that is always predefined
  • ${settings.key} - where key is a name of the application's setting. The placeholder is defined, if user input parameters are specified within a manifest. So, after preparing a custom user form, the placeholder is defined by the field’s name.

Example

    type: update

    settings:
      fields:
      - type: string
        name: customName
        caption: String field

    {
      "type": "update",
      "settings": {
        "fields": [
          {
            "type": "string",
            "name": "customName",
            "caption": "String field"
          }
        ]
      }
    }

Here, the name of the placeholder is ${settings.customName}. See the list of fields that are defined by users.

Action Placeholders

Action placeholders form a set of placeholders that can be used within the actions by means of a ${this.} namespace. So, in ${this.param} the *param is a name of the action parameter.

Example

    script: "return greeting;"

    params:
      greeting: Hello World

    {
      "script": "return greeting;",
      "params": {
        "greeting": "Hello World!"
      }
    }

Passing custom parameters to the action is performed in the following way.
    type: update
    name: example

    onInstall:
      customAction:
        first: 1
        second: 2

    actions:
      customAction:
        log: ${this.first}

    {
        "type": "update",
        "name": "example",
        "onInstall": {
            "customAction": {
                "first": 1,
                "second": 2
            }
        },
        "actions": {
            "customAction": {
                "log": "${this.first}"
            }
        }
    }

As a result, console will display the first (1) custom parameter from the ${this.first} placeholder.

Also custom actions can receive as a parameter a string or an array or strings. In this case a new placeholder ${this} will be defined within executed action.

For example:

    type: update
    name: this placeholder
    onInstall:
      customAction:  custom string
    actions:
      customAction:
        log: ${this}

    {
      "type": "update",
      "name": "this placeholder",
      "onInstall": {
        "customAction": "custom string"
      },
      "actions": {
        "customAction": {
          "log": "${this}"
        }
      }
    }


The result message of ${this} placeholder is on the screen below: this-placeholder

In case if an argument is an array of strings the executed custom action will be executed so many times how many arguments are in an array.

UI Placeholders

This is the list of placeholders that you can use to specify UI parameters.

  • ${user.uid} - user ID at the Virtuozzo Application Platform
  • ${user.email} - user email address
  • ${env.domain} - full domain name without protocol
  • ${env.appid} - unique environment appid at the Virtuozzo Application Platform
  • ${baseUrl} - user custom relative URL. More details about Relative Links here
  • ${platformUrl} - platform dashboard URL

Example

    type: update

    settings:
      fields:
        - type: string
          name: email
          caption: Email
          default: ${user.email}

    {
      "type": "update",
      "settings": {
        "fields": [
          {
            "type": "string",
            "name": "email",
            "caption": "Email",
            "default": "${user.email}"
          }
        ]
      }
    }


Custom Global Placeholders

Placeholders that are managed by users can be predefined via globals declaration. The corresponding declaration is performed in advance of the manifest installation.

Example

    type: update
    name: Global declaration

    globals:
      value1: 1
      value2: 2

    {
      "type": "update",
      "name": "Global declaration",
      "globals": {
        "value1": 1,
        "value2": 2
      }
    }


As a result, you can use {globals.value1}*</b> and <b>*{globals.value2} within the entire manifest.

Values are global placeholders (value1 and value2 in example above) could consist of like simple text or/and placeholders in it. There are the list of placeholders which are predefined in globals block:

  • ${settings.*} - input parameters from settings block, where custom forms are described
  • ${env.*} - all environment placeholders. Placeholders are available only in JPS manifests with type install - globals block will be updated after an environment is created.
  • ${nodes.*} - all node placeholders. Node values in global placeholders will be available only after environment is created.
  • ${user.*} - account placeholders are available during all JPS installation process.
  • ${fn.*} - functional placeholders are available during all JPS installation process.

Function Placeholders

These are the functions integrated inside Cloud Scripting:

  • ${fn.password} - random value within the upper and lower cases. The default length value is '10'. The length can be passed as ${fn.password(max value)}.
  • ${fn.base64} - base64 encoding
${fn.base64(value)}
  • ${fn.md5} - md5 encoding
${fn.md5(value)}
  • ${fn.uuid} - generates new Universally Unique Identifier
  • ${fn.random} - random value within the default length, comprising 7 digits
    Here, either one or two values can be passed optionally:
    • ${fn.random(max)} - random value to maximum value inclusively
    • ${fn.random(min,max)} - random value between minimum and maximum values inclusively

Functions without required parameters have two input forms:

  • ${fn.password} or ${fn.password()}
  • ${fn.random} or ${fn.random()}

The function parameter can be passed from existing placeholders, for example:

  • ${fn.md5([fn.random])} - md5 encoding random password
  • ${fn.base64([user.email])} - base64 encoding user email address
  • ${fn.compareEngine(version)} - compares the latest supported by the current platform CS engine version with the given version. Returns result:
    0 - version equals CS engine version
    1 - CS engine version greater than version
    -1 - CS engine version less than version
  • ${fn.compare(version1, version2)} - compares two given versions separated by dots. Returns result:
    0 - version1 equals version2
    1 - version1 greater than version2
    -1 - version1 less than version2

You can easily define function placeholders within the custom global placeholders, for example:

    globals:
      pass: ${fn.password}

    {
      "globals": {
        "pass": "${fn.password}"
      }
    }


Now, you can use ${globals.pass} within the entire manifest.

Data Processing Placeholders

There are data conversion routines in Cloud Scripting which can be performed with specially developed Data Processing Placeholders:
- ${*.toBase64()} - decodes data from Base64 format
- ${*.md5()} - concatenates data provided as array of words or objects
- ${*.toJSON()} - allows to find a word or object in the array of words or objects respectively
- ${*.print()} - outputs an array of words or objects to the console

${*.toBase64()}

Placeholder ${*.toBase64()} can be utilized as follows:

    type: install
    name: CS Placeholders - built-in data processing functions - toBase64

    globals:
      test: test

    onInstall:
    - assert: "'${globals.test.toBase64()}' == 'dGVzdA=='"
    - assert: "'${globals.unknown.toBase64()}' == ''"
    - set:
        test2: test2
    - set:
        test2: "${this.test2.toBase64()}"
    - assert: "'${this.test2}' == 'dGVzdDI='"

    {
      "type": "install",
      "name": "CS Placeholders - built-in data processing functions - toBase64",
      "globals": {
        "test": "test"
      },
      "onInstall": [
        {
          "assert": "'${globals.test.toBase64()}' == 'dGVzdA=='"
        },
        {
          "assert": "'${globals.unknown.toBase64()}' == ''"
        },
        {
          "set": {
            "test2": "test2"
          }
        },
        {
          "set": {
            "test2": "${this.test2.toBase64()}"
          }
        },
        {
          "assert": "'${this.test2}' == 'dGVzdDI='"
        }
      ]
    }


The result of the example execution in console:

[17:43:32 CS.toBase64]: BEGIN INSTALLATION: CS Placeholders - built-in data processing functions - toBase64
[17:43:33 CS.toBase64]: BEGIN HANDLE EVENT: {"envAppid":"","topic":"application/install"}
[17:43:34 CS.toBase64:1]: [SUCCESS] ASSERT: 'dGVzdA==' == 'dGVzdA=='
[17:43:34 CS.toBase64:2]: [SUCCESS] ASSERT: '' == ''
[17:43:35 CS.toBase64:3]: set:  {"test2":"test2"}
[17:43:35 CS.toBase64:4]: set:  {"test2":"dGVzdDI="}
[17:43:35 CS.toBase64:5]: [SUCCESS] ASSERT: 'dGVzdDI=' == 'dGVzdDI='
[17:43:36 CS.toBase64]: END HANDLE EVENT: application/install
[17:43:36 CS.toBase64]: END INSTALLATION: CS Placeholders - built-in data processing functions - toBase64

${*.fromBase64()}

Data decoding example from Base64 format to plain text:

    type: install
    name: CS:Placeholders - built-in data processing functions] - fromBase64

    globals:
      test: dGVzdA==

    onInstall:
    - assert: "'${globals.test.fromBase64()}' == 'test'"
    - assert: "'${globals.unknown.fromBase64()}' == ''"
    - set:
        test2: dGVzdDI=
    - set:
        test2: "${this.test2.fromBase64()}"
    - assert: "'${this.test2}' == 'test2'"

    {
      "type": "install",
      "name": "CS:Placeholders - built-in data processing functions] - fromBase64",
      "globals": {
        "test": "dGVzdA=="
      },
      "onInstall": [
        {
          "assert": "'${globals.test.fromBase64()}' == 'test'"
        },
        {
          "assert": "'${globals.unknown.fromBase64()}' == ''"
        },
        {
          "set": {
            "test2": "dGVzdDI="
          }
        },
        {
          "set": {
            "test2": "${this.test2.fromBase64()}"
          }
        },
        {
          "assert": "'${this.test2}' == 'test2'"
        }
      ]
    }


The output in the console should look like:

[08:13:38 CS:Placeholders.fromBase64]: BEGIN INSTALLATION: CS:Placeholders - built-in data processing functions] - fromBase64
[08:13:39 CS:Placeholders.fromBase64]: BEGIN HANDLE EVENT: {"envAppid":"","topic":"application/install"}
[08:13:40 CS:Placeholders.fromBase64:1]: [SUCCESS] ASSERT: 'test' == 'test'
[08:13:40 CS:Placeholders.fromBase64:2]: [SUCCESS] ASSERT: '' == ''
[08:13:41 CS:Placeholders.fromBase64:3]: set:  {"test2":"dGVzdDI="}
[08:13:41 CS:Placeholders.fromBase64:4]: set:  {"test2":"test2"}
[08:13:41 CS:Placeholders.fromBase64:5]: [SUCCESS] ASSERT: 'test2' == 'test2'
[08:13:41 CS:Placeholders.fromBase64]: END HANDLE EVENT: application/install
[08:13:42 CS:Placeholders.fromBase64]: END INSTALLATION: CS:Placeholders - built-in data processing functions] - fromBase64

${*.md5()}

md5 hash generation example:

    type: install
    name: CS:Placeholders - built-in data processing functions] - md5

    globals:
      test: test

    onInstall:
    - assert: "'${globals.test.md5()}' == '098f6bcd4621d373cade4e832627b4f6'"
    - assert: "'${globals.unknown.md5()}' == ''"
    - set:
        test2: test2
    - set:
        test2: "${this.test2.md5()}"
    - assert: "'${this.test2}' == 'ad0234829205b9033196ba818f7a872b'"

    {
      "type": "install",
      "name": "CS:Placeholders - built-in data processing functions] - md5",
      "globals": {
        "test": "test"
      },
      "onInstall": [
        {
          "assert": "'${globals.test.md5()}' == '098f6bcd4621d373cade4e832627b4f6'"
        },
        {
          "assert": "'${globals.unknown.md5()}' == ''"
        },
        {
          "set": {
            "test2": "test2"
          }
        },
        {
          "set": {
            "test2": "${this.test2.md5()}"
          }
        },
        {
          "assert": "'${this.test2}' == 'ad0234829205b9033196ba818f7a872b'"
        }
      ]
    }


Check the output in the console:

[08:16:57 CS:Placeholders.md5]: BEGIN INSTALLATION: CS:Placeholders - built-in data processing functions] - md5
[08:16:58 CS:Placeholders.md5]: BEGIN HANDLE EVENT: {"envAppid":"","topic":"application/install"}
[08:16:59 CS:Placeholders.md5:1]: [SUCCESS] ASSERT: '098f6bcd4621d373cade4e832627b4f6' == '098f6bcd4621d373cade4e832627b4f6'
[08:17:00 CS:Placeholders.md5:2]: [SUCCESS] ASSERT: '' == ''
[08:17:00 CS:Placeholders.md5:3]: set:  {"test2":"test2"}
[08:17:01 CS:Placeholders.md5:4]: set:  {"test2":"ad0234829205b9033196ba818f7a872b"}
[08:17:01 CS:Placeholders.md5:5]: [SUCCESS] ASSERT: 'ad0234829205b9033196ba818f7a872b' == 'ad0234829205b9033196ba818f7a872b'
[08:17:01 CS:Placeholders.md5]: END HANDLE EVENT: application/install
[08:17:02 CS:Placeholders.md5]: END INSTALLATION: CS:Placeholders - built-in data processing functions] - md5

${*.join()}

The ${*.join()} can be applied in case of array's elements should be concatenated with each other according to element filtering rule if any. The following example represents several joins:

    type: install
    name: CS:Placeholders - built-in data processing functions - join

    globals:
      array: [1, 2, 3]
      nestedArray : [{
        array : [4, 5, 6]
      }]
      arrayOfObjects: [{ id: 7 }, { id : 8 }, { id : 9 }]
      mixedArray: ["123", { id: 10 }]
      mixedArray2: [{ id: 10 }, "123"]
      mixedArray3: [{ id: 11 }, null, "456"]

    onInstall:
    - assert: "'${globals.array.join()}' == '123'"
    - assert: "'${globals.array.join(,)}' == '1,2,3'"
    - assert: "'${globals.array.join(;)}' == '1;2;3'"
    - assert: "'${globals.nestedArray[0].array.join()}' == '456'"
    - assert: "'${globals.arrayOfObjects.join(id,)}' == '7,8,9'"
    - assert: "'${globals.arrayOfObjects.join(id,;)}' == '7;8;9'"
    - assert: "'${globals.arrayOfObjects.join(id, ;)}' == '7;8;9'"
    - assert: "'${globals.arrayOfObjects.join(id,\\,\\,)}' == '7,,8,,9'"
    - assert: "'${globals.arrayOfObjects.join(id, )}' == '7 8 9'"
    - assert: "'${globals.mixedArray.join(id, )}' == ' 10'"

    - value: "${globals.mixedArray2.join(id)}"
      script: 'return { result: 0, success: (getParam(''value'') == ''{"id":10}id123'')};'
    - assert: "${response.success}"

    - assert: '''${globals.mixedArray2.join(;)}'' == ''{"id":10};123'''
    - assert: '''${globals.mixedArray2.join()}'' == ''{"id":10}123'''
    - assert: "'${globals.mixedArray3.join(id,#)}' == '11##'"
    - assert: "[${globals.array.join(\\,\\n)}].join(',') === '1,2,3'"

    {
      "type": "install",
      "name": "CS:Placeholders - built-in data processing functions - join",
      "globals": {
        "array": [
          1,
          2,
          3
        ],
        "nestedArray": [
          {
            "array": [
              4,
              5,
              6
            ]
          }
        ],
        "arrayOfObjects": [
          {
            "id": 7
          },
          {
            "id": 8
          },
          {
            "id": 9
          }
        ],
        "mixedArray": [
          "123",
          {
            "id": 10
          }
        ],
        "mixedArray2": [
          {
            "id": 10
          },
          "123"
        ],
        "mixedArray3": [
          {
            "id": 11
          },
          null,
          "456"
        ]
      },
      "onInstall": [
        {
          "assert": "'${globals.array.join()}' == '123'"
        },
        {
          "assert": "'${globals.array.join(,)}' == '1,2,3'"
        },
        {
          "assert": "'${globals.array.join(;)}' == '1;2;3'"
        },
        {
          "assert": "'${globals.nestedArray[0].array.join()}' == '456'"
        },
        {
          "assert": "'${globals.arrayOfObjects.join(id,)}' == '7,8,9'"
        },
        {
          "assert": "'${globals.arrayOfObjects.join(id,;)}' == '7;8;9'"
        },
        {
          "assert": "'${globals.arrayOfObjects.join(id, ;)}' == '7;8;9'"
        },
        {
          "assert": "'${globals.arrayOfObjects.join(id,\\,\\,)}' == '7,,8,,9'"
        },
        {
          "assert": "'${globals.arrayOfObjects.join(id, )}' == '7 8 9'"
        },
        {
          "assert": "'${globals.mixedArray.join(id, )}' == ' 10'"
        },
        {
          "value": "${globals.mixedArray2.join(id)}",
          "script": "return { result: 0, success: (getParam('value') == '{\"id\":10}id123')};"
        },
        {
          "assert": "${response.success}"
        },
        {
          "assert": "'${globals.mixedArray2.join(;)}' == '{\"id\":10};123'"
        },
        {
          "assert": "'${globals.mixedArray2.join()}' == '{\"id\":10}123'"
        },
        {
          "assert": "'${globals.mixedArray3.join(id,#)}' == '11##'"
        },
        {
          "assert": "[${globals.array.join(\\,\\n)}].join(',') === '1,2,3'"
        }
      ]
    }


Console output:

[11:39:57 CS:Placeholders.join]: BEGIN INSTALLATION: CS:Placeholders - built-in data processing functions - join
[11:39:58 CS:Placeholders.join]: BEGIN HANDLE EVENT: {"envAppid":"","topic":"application/install"}
[11:39:59 CS:Placeholders.join:1]: [SUCCESS] ASSERT: '123' == '123'
[11:39:59 CS:Placeholders.join:2]: [SUCCESS] ASSERT: '1,2,3' == '1,2,3'
[11:40:00 CS:Placeholders.join:3]: [SUCCESS] ASSERT: '1;2;3' == '1;2;3'
[11:40:00 CS:Placeholders.join:4]: [SUCCESS] ASSERT: '456' == '456'
[11:40:01 CS:Placeholders.join:5]: [SUCCESS] ASSERT: '7,8,9' == '7,8,9'
[11:40:02 CS:Placeholders.join:6]: [SUCCESS] ASSERT: '7;8;9' == '7;8;9'
[11:40:02 CS:Placeholders.join:7]: [SUCCESS] ASSERT: '7;8;9' == '7;8;9'
[11:40:03 CS:Placeholders.join:8]: [SUCCESS] ASSERT: '7,,8,,9' == '7,,8,,9'
[11:40:03 CS:Placeholders.join:9]: [SUCCESS] ASSERT: '7 8 9' == '7 8 9'
[11:40:04 CS:Placeholders.join:10]: [SUCCESS] ASSERT: ' 10' == ' 10'
[11:40:04 CS:Placeholders.join:12]: script:  {"body":"return { result: 0, success: (getParam('value') == '{\"id\":10}id123')};","value":"{\"id\":10}id123"}
[11:40:04 CS:Placeholders.join:12]: script.response: {"result":0,"success":true}
[11:40:05 CS:Placeholders.join:13]: [SUCCESS] ASSERT: true
[11:40:05 CS:Placeholders.join:14]: [SUCCESS] ASSERT: '{"id":10};123' == '{"id":10};123'
[11:40:06 CS:Placeholders.join:15]: [SUCCESS] ASSERT: '{"id":10}123' == '{"id":10}123'
[11:40:06 CS:Placeholders.join:16]: [SUCCESS] ASSERT: '11##' == '11##'
[11:40:07 CS:Placeholders.join:17]: [SUCCESS] ASSERT: [1,
2,
3].join(',') === '1,2,3'
[11:40:07 CS:Placeholders.join]: END HANDLE EVENT: application/install
[11:40:07 CS:Placeholders.join]: END INSTALLATION: CS:Placeholders - built-in data processing functions - join

${*.toJSON()}

This placeholder returns structured data in JSON format.

${*.print()}

Prints content of placeholders to the console. For example:

    type: install
    name: CS:Placeholders - built-in data processing functions- toJSON/print'

    globals:
      array: [1, 2, 3]
      object:
        a: 1
        b: 2
        c: 3

    onInstall:
    - assert: "'${globals.array.toJSON()}' == '[1,2,3]'"
    - assert: '''${globals.object.toJSON()}'' == ''{"a":1,"b":2,"c":3}'''
    - assert: "[${globals.array.toJSON(2)}].join('') == '1,2,3'"
    - assert: "'${globals.unknown.toJSON()}' == ''"
    - assert: "'${globals.unknown.print()}' == ''"
    - log: "${globals.print()}"

    {
      "type": "install",
      "name": "CS:Placeholders - built-in data processing functions- toJSON/print'",
      "globals": {
        "array": [
          1,
          2,
          3
        ],
        "object": {
          "a": 1,
          "b": 2,
          "c": 3
        }
      },
      "onInstall": [
        {
          "assert": "'${globals.array.toJSON()}' == '[1,2,3]'"
        },
        {
          "assert": "'${globals.object.toJSON()}' == '{\"a\":1,\"b\":2,\"c\":3}'"
        },
        {
          "assert": "[${globals.array.toJSON(2)}].join('') == '1,2,3'"
        },
        {
          "assert": "'${globals.unknown.toJSON()}' == ''"
        },
        {
          "assert": "'${globals.unknown.print()}' == ''"
        },
        {
          "log": "${globals.print()}"
        }
      ]
    }


Check the output for both placeholders ${*.toJSON()} and ${*.print()}:

[12:49:36 CS:Placeholders.toJSON/print']: BEGIN INSTALLATION: CS:Placeholders - built-in data processing functions- toJSON/print'
[12:49:36 CS:Placeholders.toJSON/print']: BEGIN HANDLE EVENT: {"envAppid":"","topic":"application/install"}
[12:49:37 CS:Placeholders.toJSON/print':1]: [SUCCESS] ASSERT: '[1,2,3]' == '[1,2,3]'
[12:49:38 CS:Placeholders.toJSON/print':2]: [SUCCESS] ASSERT: '{"a":1,"b":2,"c":3}' == '{"a":1,"b":2,"c":3}'
[12:49:38 CS:Placeholders.toJSON/print':3]: [SUCCESS] ASSERT: [[
  1,
  2,
  3
]].join('') == '1,2,3'
[12:49:39 CS:Placeholders.toJSON/print':4]: [SUCCESS] ASSERT: '' == ''
[12:49:39 CS:Placeholders.toJSON/print':5]: [SUCCESS] ASSERT: '' == ''
[12:49:40 CS:Placeholders.toJSON/print':6]:> {
  "array": [
    1,
    2,
    3
  ],
  "object": {
    "a": 1,
    "b": 2,
    "c": 3
  }
}
[12:49:40 CS:Placeholders.toJSON/print']: END HANDLE EVENT: application/install
[12:49:40 CS:Placeholders.toJSON/print']: END INSTALLATION: CS:Placeholders - built-in data processing functions- toJSON/print'

${*.contains()}

This placeholder is used for checking if the specified element exists in the given list or not.
For example:

    type: install
    name: CS:Placeholders - built-in data processing functions] - contains

    globals:
      array: ["abc", "def", "ghi"]
      arrayOfObjects: [{"a": 1}, {"b": 2}, {"c": 3}, {"def": 4}]
      query: def

    onInstall:
    - assert: "${globals.array.contains(def)}"
    - assert: "${globals.array.contains(jkl)} === false"
    - assert: "${globals.array.contains([globals.query])}"
    - assert: "${globals.array.contains([globals.array[0]])}"
    - assert: "${globals.arrayOfObjects.contains(b, 2)}"
    - assert: "${globals.unknown.contains(abc)} === false"

    {
      "type": "install",
      "name": "CS:Placeholders - built-in data processing functions] - contains",
      "globals": {
        "array": [
          "abc",
          "def",
          "ghi"
        ],
        "arrayOfObjects": [
          {
            "a": 1
          },
          {
            "b": 2
          },
          {
            "c": 3
          },
          {
            "def": 4
          }
        ],
        "query": "def"
      },
      "onInstall": [
        {
          "assert": "${globals.array.contains(def)}"
        },
        {
          "assert": "${globals.array.contains(jkl)} === false"
        },
        {
          "assert": "${globals.array.contains([globals.query])}"
        },
        {
          "assert": "${globals.array.contains([globals.array[0]])}"
        },
        {
          "assert": "${globals.arrayOfObjects.contains(b, 2)}"
        },
        {
          "assert": "${globals.unknown.contains(abc)} === false"
        }
      ]
    }


The result of such action is a Boolean value: true or false:

[14:33:59 CS:Placeholders.contains]: BEGIN INSTALLATION: CS:Placeholders - built-in data processing functions] - contains
[14:34:00 CS:Placeholders.contains]: BEGIN HANDLE EVENT: {"envAppid":"","topic":"application/install"}
[14:34:01 CS:Placeholders.contains:1]: [SUCCESS] ASSERT: true
[14:34:02 CS:Placeholders.contains:2]: [SUCCESS] ASSERT: false === false
[14:34:03 CS:Placeholders.contains:3]: [SUCCESS] ASSERT: true
[14:34:03 CS:Placeholders.contains:4]: [SUCCESS] ASSERT: true
[14:34:04 CS:Placeholders.contains:5]: [SUCCESS] ASSERT: true
[14:34:04 CS:Placeholders.contains:6]: [SUCCESS] ASSERT: false === false
[14:34:04 CS:Placeholders.contains]: END HANDLE EVENT: application/install
[14:34:05 CS:Placeholders.contains]: END INSTALLATION: CS:Placeholders - built-in data processing functions] - contains

Array Placeholders

Any array has a list of specific placeholders: array length, element by ID, the first and the last array elements.

Array Length

Any array length placeholder can be defined within a manifest.

Example

${nodes.cp.length},
${nodes.bl.extips.length}

Element by ID

Each element has an index in the array.

Example

{nodes.cp[(i)].(key)}

where:

  • (i) - array index, starting from '0'
  • (key) - node parameters

The First and the Last Array Elements

  • {nodes.cp.first.(key)} - array element with the '0' index
  • {nodes.sqldb.last.(key)} - array element with the last ID in the array

Here, key is the node parameter.

File Path Placeholders

The values below can vary depending on a particular nodeType:

  • ${HOME} - for couchdb, glassfish3, jetty6, nginx-ruby, nginx, nginxphp, tomcat6,tomcat7, tomee
  • ${WEBAPPS} - for apache2-ruby, apache2, jetty6, nginx-ruby, nginxphp, nodejs, tomcat6, tomcat7, tomee
  • ${JAVA_HOME} - for glassfish3, jetty6, maven3, tomcat6, tomcat7, tomee
  • ${JAVA_LIB} - for tomcat6, tomcat7
  • ${SYSTEM_CRON} - for all native nodeType
  • ${SYSTEM_ETC}- for all nodeType
  • ${SYSTEM_KEYS} - for all native nodeType
  • ${SERVER_CONF} - for apache2, glassfish3, jetty6, maven3, tomcat6, tomcat7, tomee
  • ${SERVER_CONF_D} - for apache2, memcached, nginx, nginxphp
  • ${SERVER_MODULES} - for apache2, glassfish3, jetty6, nginxphp, tomcat6, tomcat7, tomee
  • ${SERVER_SCRIPTS} - for couchdb, mariadb, mariadb10, mongodb, mysql5, postgres8, postgres9
  • ${SERVER_WEBROOT} - for apache2-ruby, apache2, jetty6, nginx-ruby, nginxphp, nodejs, tomcat6, tomcat7, tomee
  • ${SERVER_BACKUP} - for couchdb, mariadb, mariadb10, mongodb, mysql5, postgres8, postgres9
  • ${SERVER_LIBS} - for apache2, glassfish3, jetty6, nginxphp, tomcat6, tomcat7, tomee
  • ${SERVER_DATA} - for postgres8, postgres9

You can use the following placeholders, as well, with the definite nodeType:

  • ${glassfish3.HOME} - /opt/glassfish3/temp
  • ${jetty6.JAVA_HOME} - /usr/java/latest
  • ${mariadb10.SERVER_BACKUP} - /var/lib/jelastic/backup
  • ${maven3.SYSTEM_KEYS} - /var/lib/jelastic/keys
  • ${memcached.SERVER_CONF} - /etc/sysconfig
  • ${mongodb.SYSTEM_CRON} - /var/spool/cron
  • ${mysql5.SERVER_SCRIPTS} - /var/lib/jelastic/bin
  • ${mysql5.SYSTEM_ETC} - /etc
  • ${nginx-ruby.SERVER_WEBROOT} - /var/www/webroot
  • ${nginx.SERVER_CONF_D} - /etc/nginx/conf.d

Explore the full list of available nodeType values within the linked page.

The list of single placeholders:

  • ${nginxphp.NGINX_CONF} - /etc/nginx/nginx.conf
  • ${postgresql.POSTGRES_CONF} - /var/lib/pgsql/data
  • ${mysql5.MYSQL_CONF} - /etc
  • ${mariadb.MARIADB_CONF} - /etc
  • ${nginxphp.PHP_CONF} - /etc/php.ini
  • ${nginxphp.PHPFPM_CONF} - /etc/php-fpm.conf
  • ${nginxphp.PHP_MODULES} - /usr/lib64/php/modules
  • ${nginxphp.WEBROOT} - /var/www/webroot

Default Values of Placeholders

All placeholders which are spelled out in manifest and are not defined in Cloud Scripting during manifest execution will be displayed like a simple texts.
In the example below the action assert is executed where values are compared.

    type: update
    name: Default values of placeholders
    onInstall:
      assert:
      - "'${unknown:defaultValue}' === 'defaultValue'"
      - "'${noName:[fn.password(7)]}'.length === 7"
      - "'${unknown:}' === ''"

    {
        "type": "update",
        "name": "Default values of placeholders",
        "onInstall": {
            "assert": [
                "'${unknown:defaultValue}' === 'defaultValue'",
                "'${noName:[fn.password(7)]}'.length === 7",
                "'${unknown:}' === ''"
            ]
        }
    }


The first comparing in assert action is "'${unknown:defaultValue}' === 'defaultValue'", where placeholder ${unknown:defaultValue} in Cloud Scripting engine isn't defined. So the simple string will be displayed in console. The same behaviour will be with another comparisons.
The executed results on the screen below: simple-comparison

Default placeholder values can be replaced in placeholders if they were defined before they are spelled out in manifest. For example, custom placeholders can be defined in action set.

    type: update
    name: Default values of placeholders
    onInstall:
    - set:
        custom: test
        length: 7
        'null':
        'false': false
        empty: ''
    - assert:
      - "'${unknown:defaultValue}' === 'defaultValue'"
      - "'${unknown:[fn.password(7)]}'.length === 7"
      - "'${unknown:[fn.password([this.length])]}'.length === 7"
      - "'${unknown:[this.custom]}' === 'test'"
      - "'${unknown:[this.empty]}' === ''"
      - "'${unknown:[this.false]}' === 'false'"
      - "'${unknown:[this.null]}' === 'null'"
      - "'${unknown:}' === ''"

    {
      "type": "update",
      "name": "Default values of placeholders",
      "onInstall": [
        {
          "set": {
            "custom": "test",
            "length": 7,
            "null": null,
            "false": false,
            "empty": ""
          }
        },
        {
          "assert": [
            "'${unknown:defaultValue}' === 'defaultValue'",
            "'${unknown:[fn.password(7)]}'.length === 7",
            "'${unknown:[fn.password([this.length])]}'.length === 7",
            "'${unknown:[this.custom]}' === 'test'",
            "'${unknown:[this.empty]}' === ''",
            "'${unknown:[this.false]}' === 'false'",
            "'${unknown:[this.null]}' === 'null'",
            "'${unknown:}' === ''"
          ]
        }
      ]
    }

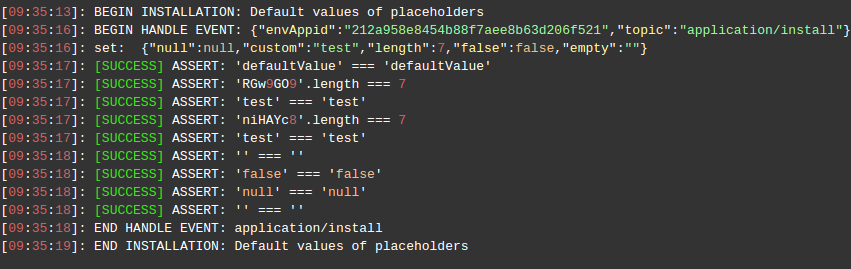

The results on the screen below: comparison

Engine Placeholder

The ${engine} placeholder returns the latest Cloud Scripting engine version that is supported by the platform the manifest is executed on.

${engine} - CS engine version

In order to determine whether JPS manifest is supported or not the function placeholders can be used:

    type: install
    name: Ability co compare CS engine versions

    onInstall:
    - assert:
      - "'${engine}'.split('.').length > 0"
      - "'${fn.compare}' == 0"
      - "'${fn.compare(5.4.1, 5.4.2)}' == -1"
      - "'${fn.compare(5.5, 5.4.2)}' == 1"
      - "'${fn.compare(5.4.0, 5.4.0.0)}' == 0"
      - "'${fn.compareEngine}' == 0"
      - "'${fn.compareEngine(1.5.1)}' == 1"
      - "'${fn.compareEngine(1000000)}' == -1"

    {
      "type": "install",
      "name": "Ability co compare CS engine versions",
      "onInstall": [
        {
          "assert": [
            "'${engine}'.split('.').length > 0",
            "'${fn.compare}' == 0",
            "'${fn.compare(5.4.1, 5.4.2)}' == -1",
            "'${fn.compare(5.5, 5.4.2)}' == 1",
            "'${fn.compare(5.4.0, 5.4.0.0)}' == 0",
            "'${fn.compareEngine}' == 0",
            "'${fn.compareEngine(1.5.1)}' == 1",
            "'${fn.compareEngine(1000000)}' == -1"
          ]
        }
      ]
    }


Another example how to check platform version compatibility:

    type: install
    name: Ability co compare CS engine versions

    onInstall:
      - system.service.GetVersion
      - if ('${fn.compare([response.version], 5.7)}' == -1):
          log: not compatible version

    {
      "type": "install",
      "name": "Ability co compare CS engine versions",
      "onInstall": [
        "system.service.GetVersion",
        {
          "if ('${fn.compare([response.version], 5.7)}' == -1)": {
            "log": "not compatible version"
          }
        }
      ]
    }


Account Placeholders

To ensure ability to process user's quotas and collaboration the following ${account.(key)} placeholders are available:

  • ${account.}
    • ${account.groupType}
    • ${account.bonus}
    • ${account.hardNodeGroups}
    • ${account.createdOn}
    • ${account.updatedGroupOn}
    • ${account.defaultHardNodeGroup}
    • ${account.uid}
    • ${account.isCommerial}
    • ${account.balance}
    • ${account.isRegistered}
    • ${account.updatedStatusOn}
    • ${account.status}
    • ${account.group}
    • ${account.email}

Placeholders ${account.(key)} are initialized on demand, that is, only if they are used and only at the moment they are required. Placeholder values are filled in depending on which user the installation is carried out for. That is, the placeholders will be filled with values for the collaborator selected during installation.

Quota Placeholders

To ensure ability to process user's quotas and collaboration the following ${quota.(key) and ${quota.data.(key)} placeholders are available:

  • ${quota.}

    • ${quota.maxcloudletsperrec}
    • ${quota.maxcount}
    • ${quota.disk.iolimit}
    • ...
  • ${quota.data.}

    • ${quota.data.environment.maxcloudletsperrec.quota.name}
    • ${quota.data.environment.maxcloudletsperrec.quota.description}
    • ${quota.data.environment.maxcloudletsperrec.quota.id}
    • ${quota.data.environment.maxcloudletsperrec.type}
    • ${quota.data.environment.maxcloudletsperrec.value}
    • ...

Placeholders ${quota.(key)} are initialized on demand, that is, only if they are used and only at the moment they are required. Placeholder values are filled in depending on which user the installation is carried out for. That is, the placeholders will be filled with values for the collaborator selected during installation.

Placeholders ${quota.(key)} are filled with quota values, where key is the name of the quota (for example: ${quota.environment.maxcloudletsperrec}).

Placeholders ${quota.data.(key)} allow you to get quota data (for example, type: ${quota.data.environment.maxcloudletsperrec.type}).

Example:

    type: install
    name: Account And Quota Placeholders

    settings:
      fields: []

      onBeforeInit: |
        settings.fields.push({
          type: "string",
          caption: "Account",
          name: "email",
          value: "${account.email}"
        }, {
          type: "string",
          caption: "Cloudlets",
          name: "cloudlets",
          value: "${quota.environment.maxcloudletsperrec}"
        });
        return settings;

    {
      "type": "install",
      "name": "Account And Quota Placeholders",
      "settings": {
        "fields": [

        ],
        "onBeforeInit": [
            "settings.fields.push({",
            "  type: 'string',",
            "  caption: 'Account',",
            "  name: 'email',",
            "  value: '${account.email}'",
            "},",
            "{",
            "  type: 'string',",
            "  caption: 'Cloudlets',",
            "  name: 'cloudlets',",
            "  value: '${quota.environment.maxcloudletsperrec}'",
            "});",
            "return settings;"
            ]
      }
    }




What’s next?

v: 8.8.1
